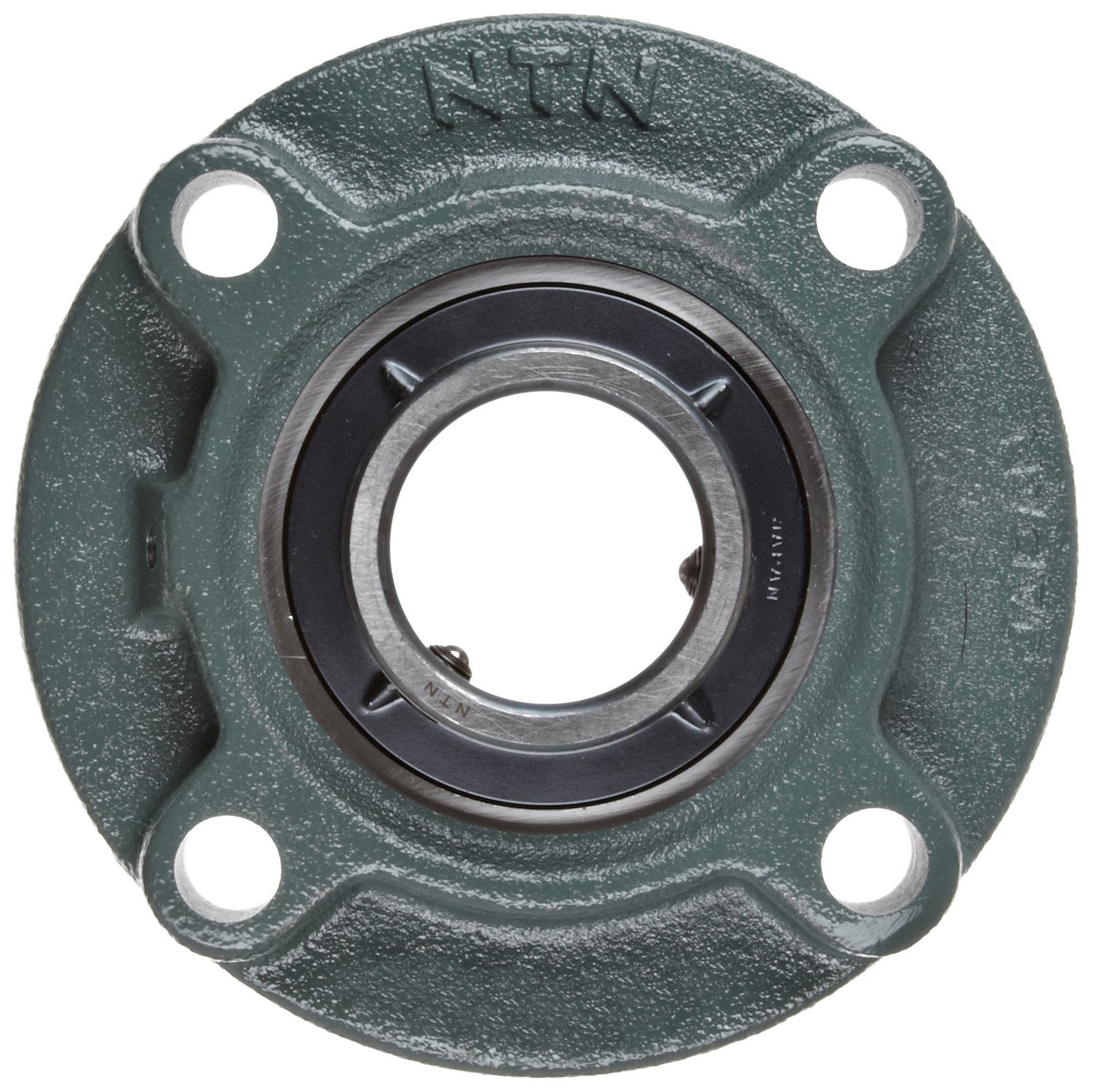

NTN SM-UCFC205D1 Light Duty Piloted Flange Bearing, 4 Bolts, Setscrew Lock, Regreasable, Contact and Flinger Seals, Cast Iron, 25mm Bore, 3-35/64" Bolt Hole Spacing Width, 4-17/32" Height

This NTN UCFC series light-duty piloted flange ball bearing unit with four bolt holes, contact and flinger seals, a setscrew lock, and an end cover is designed for mounting onto bearing surfaces perpendicular to the shaft axis. This ready-to-mount flange unit has a one-piece housing made of gray cast iron for rigidity and vibration damping. Its solid base provides stability to the unit when mounted. The double-sealed, deep-groove radial ball bearing insert in the housing is made of through-hardened chromium steel and is rated “light duty” for applications with moderate radial loads and light thrust or combination loads. It has a wide, extended inner ring on both sides for increased shaft support and reduced inner-ring tilt for smooth operation. This self-aligning bearing has a convex sphered outer surface that compensates for misalignments. Steel-reinforced molded rubber lip seals on both sides of the bearing retain lubricant applied at manufacture and help keep out contaminants. For added protection, flingers on the inner ring deflect contaminants away from the seals. The bearing locks onto the shaft with two setscrews spaced 120 degrees apart for a three-point contact hold. This lock type minimizes ring distortion and vibration and is suitable for low to moderate speed applications where the shaft rotates in a single or reversing direction. This bearing unit has a brass grease fitting on the housing outer surface for reapplying lubricant, and comes with a closed-end pressed steel dust cover with a greased double rubber seal. The cover protects the bearing and shaft end in applications with high dust levels or splashes of liquid, such as conveyors or steel mills. Flanged bearing units are suitable for use in industrial and commercial applications including conveyors, fans and blowers, construction machinery, and processing equipment, among many others.Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.NTN manufactures bearings, joints, hubs, components, and assemblies that meet International Organization for Standardization (ISO) standards for quality assurance. The company, founded in 1918, is based in Osaka, Japan.

• Cast iron flanged housing with a solid base for vibration damping and structural rigidity
• Light-duty, double-sealed radial ball bearing insert with a wide inner ring for moderate radial loads and light thrust or combination loads
• Synthetic rubber lip contact seals keep lubricant in and contaminants out and flingers provide extra sealing protection
• Setscrew lock for a three-point contact hold on the shaft
• Pressed steel dust cover with a closed end provides extra protection against dust and liquids
